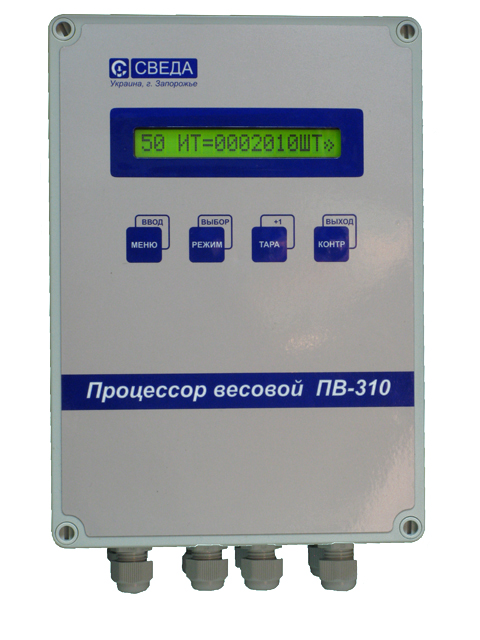

The weighing processor is intended for processing of input analogue signals from load cells and input discrete signals with outputing of results on the digital board and external connectors.

The weighing processor is delivered with the software for operation in belt scales, discrete and continuous batchers, accounting systems of control and freight flow control. The following service functions are realised in the software:

• built-in test system;
• digital communication channel with the computer or the upper level controller;
• password protection from unauthorized access to the device settings;
• the journal of error registrations;
• Russian menu.

Power supply........................................  from alternating-current network with voltage V, frequency (50±1) Hz or (by request) from autonomous voltage source of direct current (12-15) V
Overall dimensions........................................................................... 254L х 182W х 90H or 182L х 110W х 90H mm
Mass................................................................................................... not more than 1,5 kg
Temperature range.........................................................................................-20... +50 °С
Display......................................................................................... liquid crystal character, 16 decades, height 11 mm
Range of the input analogue signal of direct current voltage............................................................................................................. 0... 10 mV
Range of the output analogue signal of direct current........................................................................................ 0... 5; 0... 20; 4... 20 mA
Reception of discrete signals............................................................................ 4 ports of galvanically disentangled signals of direct current
Output of discrete signals.................................................................................. 4 ports of galvanically disentangled signals of direct or alternate current
Load cells power supply............................................................................. 5 V of direct current voltage
Amount of ports for load cells connection ............................................................... 1
Number of load cells............................................................................................... to 6
Length of the load cells cable.................................................................. 50 m maximum
Internal resolution............................................................................... 100000 references
Industrial resolution.............................................................................. 40000 references
Commercial resolution.......................................................................... 10000 references
Counting resolution............................................................................... 1; 2; 5; 10; 20; 50
Control buttons..................................................................................................... 4 pieces
Serial galvanically disentangled interface............................................................ RS-485
Volatile memory RAM............................................................................. 8 Kb by request
Memory of programs with the possibility of
embedded programming with capacity............................................................... 32-64 Kb
Volatile memory EEPROM........................................................................................ 2 Kb
Protection level from the environmental effects......................................................... IР65
