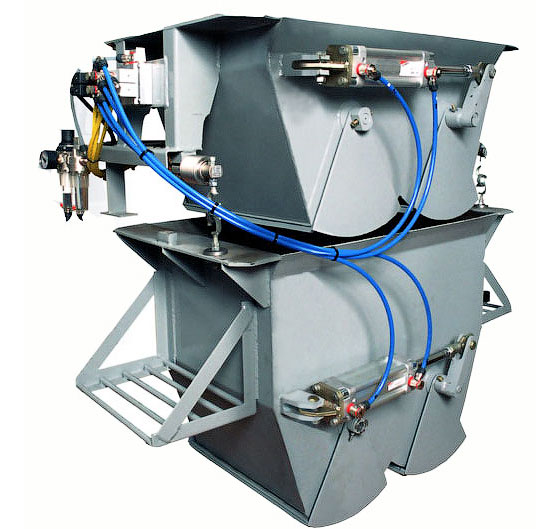

| Hopper scales WBA-3-150 |
|
Function
Hopper scales WBA-3-150 are intended for portion weighing and account of granular material
Hopper scales complement • hopper with the damper valves
• set of load-cells• weighing processor PW-310 • portable board TV-330-16 • set of pneumatic equipment • control cabinet Functions
• automatic control of batching • setting and indication of dose weight • indication of the shift total, day total and so forth • data transmission to the computer and networking Technical data of hopper scales
Upper weighing limit.................................................... 150 kg
Weighing error limit..................................................... 0,1%
Batching limits............................................................. 100 kg
Capacity limit............................................................... 25 t/h
Out of the weighing processor...................................... RS485
Compressed air consumption........................................ not more 1,5 m3/h Overall dimensions....................................................... mm
Guarantee Hopper scales guarantee – 18 months, operative service during all service life.
Certificates Hopper scales are certified in Ukraine and Russia.
Customers
Hopper scales are used on more than 50 sugar plants of Ukraine and Russia.
 |
