Traverse crane scales

Весы крановые траверсные

Crane scales function:

Crane scales are intended for measuring of metal weight in ladle, moved by traverse of the teeming crane.

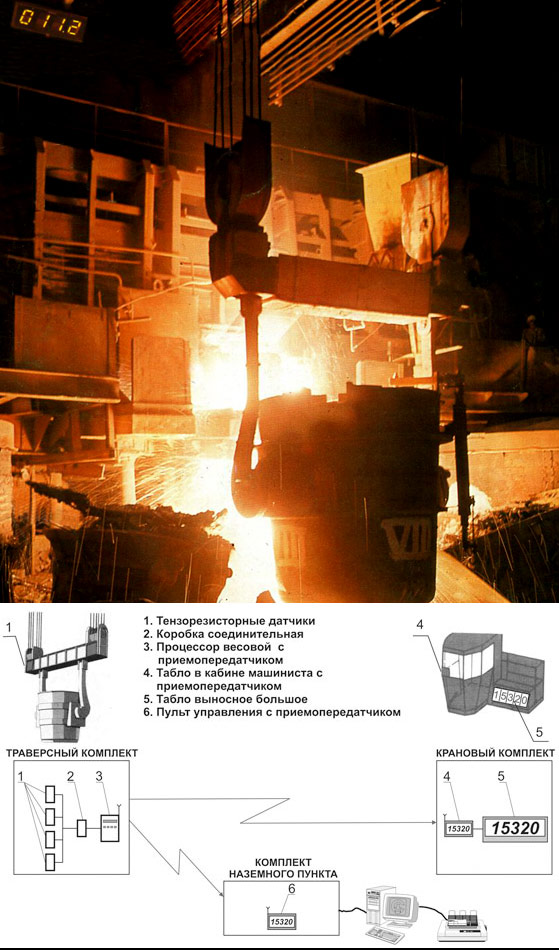

Crane scales complement:

Traverse package:

load cells
load-taking device (LTD)
weighing processor
communicator
autonomous power supply unit

Crane (cabin) package:

panel-board
communicator
portable board
ground package (by request):
panel-board
communicator

Functions

measuring of the ladle weight "Gross", "Tare", "Net";
control by the radio channel from the panel-board of the crane operator
information transfer on the panel-board of the crane operator and the portable board;
information transfer to the ground point

Technical data of crane scales:

Upper weighing limit........................................ 200 t
Measurement error ..........................................±0,1 %
Temperature range............................................-10…+50 for the instrumentation
-10 +80 for LTJ
Supply voltage....................................................10-14 V const, 220 V alt.
Indicator height of the portable board................ 100 mm
