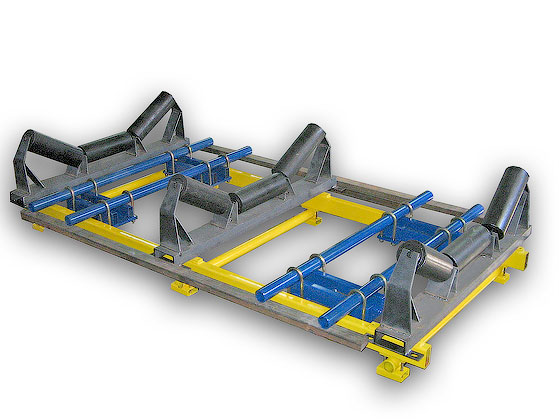

| Multi-roll belt scales VK-230 |
|
Function
Belt scales are intended for continuous weighing and the account of granular materials on the existing conveyor in mining and smelting, chemical, building and other industries.
Belt scales complement:
Functions
Measuring and indication on 16 digit alpha-numeric display of:
• current and total consumption of material (constantly) • conveyor speed • weight of the empty belt • length of the conveyor belt • linear load • indicator tests, analogue-digital converter, the device of input-output, etc. • saving of current data at supply voltage cutoff For calibration and checking of belt scales without takeoff of the weighed material, the corporation manufactures the special calibration device, which technique of use is approved with standardization and metrology organs. Scales can be used for the commercial account of material. Technical data of belt scales:
Error.................................................................................. ±0,5 %
Width of the conveyor belt................................................. from 800 to 1600 mm The maximum capacity....................................................... to 2000 t/h Output signal: analogue.............................................................................. 0... 5, 0... 20, 4... 20 mА links with PC...................................................................... RS-485 protection level from the environmental effects................. IР54-IР68 ambient temperature............................................................-10... + 50 °С Belt weigher of type ВК is deposited to the State register of means of a measurement technology of Ukraine № 2628-08
Customers
Belt scales VK are used at more than 200 metallurgical manufacturers, mines, processing plants, open pits, sugar and cement factories of Ukraine, Russia, Belarus, Moldova, Kazakhstan, Uzbekistan and other CIS countries. Among our customers there are factories "Zaporozhstal", "Azovstal", "Pavlograd-ugol", Kurahovsky thermal power plant, Zaporozhskaya thermal power plant, Krivorozhskaya thermal power plant, ASHAR heat and power plant, "Lvovsistemenergo", "Dontcement", «Krivoyrogcement», more than 100 sugar plants of CIS.
Additional equipment:
 |
