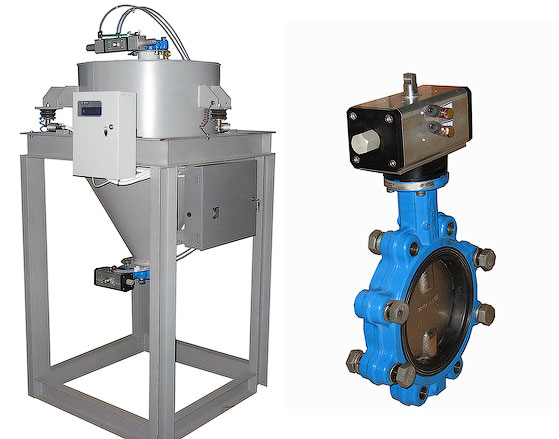

Liquid batcher is intended for weighing, batching and account of the liquid substances in technological processes.

• frame
• weighing bin (tank)
• package of load-taking device
• package of load cells
• damper plate valve
• weighing processor
• electropneumatic actuator
• junction box
• cable

• measuring of hopper weight "Tara", "Gross", "Net"
• batching of the set portion
• control of filling-up and unloading process
• accumulation of weighing results in the progressive total
• link with the computer in the process control system (PCS)

Hopper volume......................................................... 100 l
Upper weighing limit................................................ 200 kg
Dose mass................................................................ 30-75 kg
Discrecity of the dose setting................................... 0,2 kg
Batching error.......................................................... ± 0,5 %
Capacity.................................................................. 60 portions/hour
Overall dimensions.................................................. 930х930х2020 mm
Temperature operating range....................................-10... +40 °C
