• indication of data
• controls the weighing processor in terminal mode
• connection to the local computer network

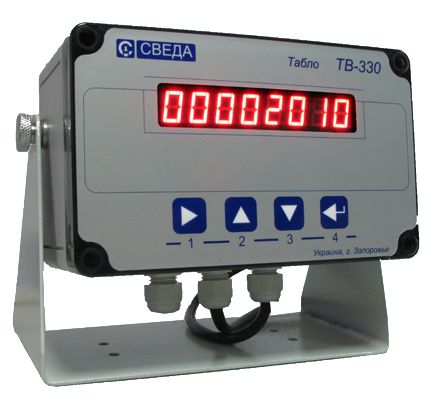

The indicator panel has three modifications depending on number of displayed discharges: TV-330-5, TV-330-8, TV-330-16. The indicator panel represents a portable desktop device in the plastic frame with a cover. On the inside of a cover there are the controller board and the digital indicator fixed. In the frame on the indicator the power supply transformer is fixed. The connection of the network cable and the cable of external connections is carried out through two pressure seals, located on the lower side of the indicator panel.

Power supply......................................... from alternating-current network with voltage V, frequency (50±1) Hz
Power consumption............................... 10 VA
Overall dimensions............................... 182 х 110 х 90 mm
Mass..................................................... not more than 1,25 kg
Temperature range................................-10... + 50 °С
Display:
TV-330-5............................................ 5 discharges, 7 segments, decade height 38 mm, light-emitting diode
TV-330-8............................................ 8 discharges, 7 segments, decade height 14,5 mm, light-emitting diode
TV-330-16.......................................... liquid crystal character with illumination, 16 decades, decade height 9,66 mm
Interface RS-485................................ 2 pieces
Length of cable RS-485...................... not more than 1200 m
