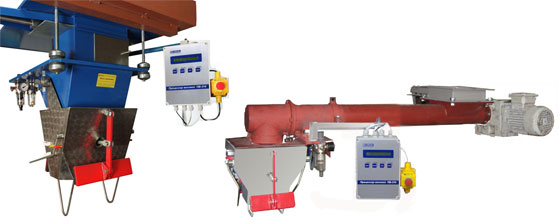

The batcher for granular materials is intended for batching of granular materials (sugar, cereals, grains) in bags of the open type.

• load-taking device;
• batching device;
• load cell;
• weighing processor;
• package of the electropneumatic actuator.

• automatic control of the batching process;
• indication of dose weight (bag)
• account and indication of total amount of bags
• link with the computer.

Batcher for granular materials - Operating principle:

The human controller, putting  the bag on the charging hopper, closes the circuit of limit switches by means of the bar. The further operation occurs automatically. The weighing processor produces the command on the bag clamp and consecutive opening of the shutter "Low", "High" and "Bag reset". The current bag weight and the shift total is induced on the indicator.

Upper (lower) batching limit...................................................... 5,0-70,0 kg
Discrecity of the dose setting ....................................................  5,0 (10,0) g
Supposed dose error ................................................................. not more than 0,1-0,25 %
Capacity..................................................................................... 420 bags/h
Overall dimensions:
weighing device..........................................................................655×800×800 mm
weighing processor PW-310..................................................... 180×90×280 mm
Mass.......................................................................................... 80 kg
Compressed air consumption......................................................not more than 1,3 m3/h

The batcher for granular materials is certified as a measuring device in Ukraine (№ U 1409-01), Russia (25461-03), Belarus (RB 0302206903) and Kazakhstan (KZ.02.03.02536-2008). The guarantee - 18 months.

The batchers for granular materials are used at more than 200 factories of Ukraine and the CIS countries.

Additional equipment:

Bag sewing line

Bag weight accounting system
