Function
Crane scales are intended for measuring of the weights mass, displaced by cranes inside and outside of the room.
Specification
Crane scales complement:
- crane scales
- accumulator (2 pieces)
- remote-control board
- support
- documentation package
Additionally:
- radio channel
- the control board with indication
- land board with the computer
- protective heat screen
- charger
Functions
- сontrol by radio- and infra-red port;
- digital indication;
- сompensation of the tare weight;
- summation of the weighing results;
- autonomous power supply;
- overloading indication.

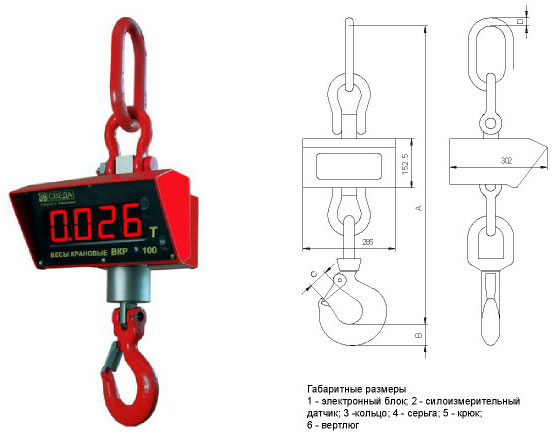

Technical data of crane scales:
|
Type
|
UWL, kg
|
Error, kg
|
Mass, kg
|
А, mm
|
В, mm
|
C, mm
|
D, mm
|
|
Crane scales VKR-100-3
|
3000
|
±3
|
20
|
547
|
32
|
35
|
13
|
|
Crane scales VKR-100-5
|
5000
|
±6
|
26
|
738
|
40
|
45
|
22
|
|
Crane scales VKR-100-10
|
10000
|
±10
|
37
|
922
|
58
|
53
|
26
|
|
Crane scales VKR-100-20
|
20000
|
±20
|
125
|
1305
|
77
|
77
|
45
|
| Crane scales VKR-100-30 |
30000 |
±30 |
135 |
1350 |
100 |
100 |
46 |
Temperature range..............................................-20... 50 °С
Control distance:
For IR-channel.................................................... 20 m
For RC-channel................................................... 50 m
Height of the indicator symbols........................... 57 mm
Power supply from the accumulator.................... 10-15 V
Guarantee
Crane scales guarantee – 18 months, operative service during all service life.
Crane scales are certified in Ukraine, Russia, Kazakhstan (№ 1664-02, № 16314, № KZ.02.03.00889-2005 of corresponding Registers of measuring devices)
Customers
Crane scales VKR-100 are used by the number of the leading manufactures of Ukraine — factories "Zaporozhstal", "Azovstal", "Dneprospezstal", by name of Frunze, Kremenchug steel and car-building factories, the companies — "Interpipe", USMC, "Azot" and so forth.
|
