• base frame
• electric motor with the thrower
• cabinet with electric equipment
• shutter low-high
• load cell
• weighing processor
• loading device
• package of the electropneumatic actuator

• automatic control of the batching process
• indication of dose weight (bag)
• account and indication of total amount of bags
• link with the computer.

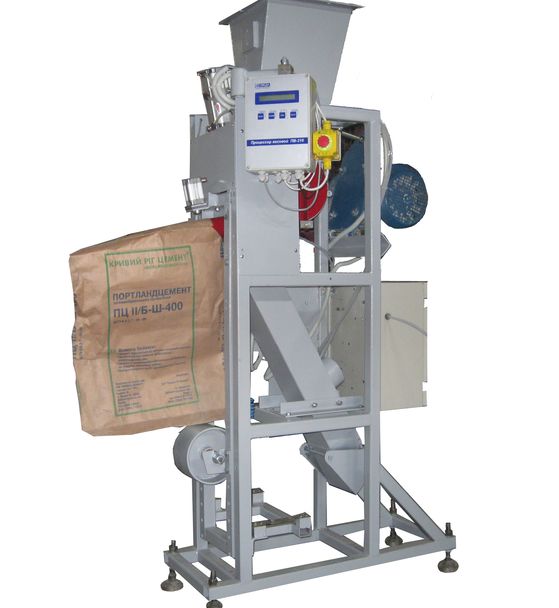

Batcher for granular materials - Operating principle:

The operating principle of the batcher for granular materials is grounded on use of the electric motor with the thrower of centrifugal type. The human controller, putting the bag on the charging hopper, closes the circuit of limit switches by means of the bar. The further operation occurs automatically. The weighing processor produces the command on the bag clamp and consecutive shutter control: "Low", "High" and "Bag reset". The current bag weight and the shift total is induced on the indicator.

Upper batching limi............................................. 10,0-70,0 kg
Discrecity of the dose setting............................... 20,0 g
Supposed dose error............................................ not more than 1,0 %
Capacity............................................................... 200 bags/h
Overall dimensions:
weighing device ...................................................1580×1238×480 mm
weighing processor.............................................. 180×90×280 mm
Mass..................................................................... 150 kg
Compressed air consumption................................ not more than 1,0 m3/h
Temperature operating range ...................................-10 … +45 °C
Protection level from dust and water penetration:
weighing device.................................................... IP54
weighing processor PW-310................................. IP65
