Design of platform scales:

Platform scales VP-305 of the common and special purpose are manufactured in various modifications, different by magnitudes of the upper weighing limit (from 100 kg to 20t), discrecity of counting and other metrology characteristics, and also by type and the sizes of load-taking platform.

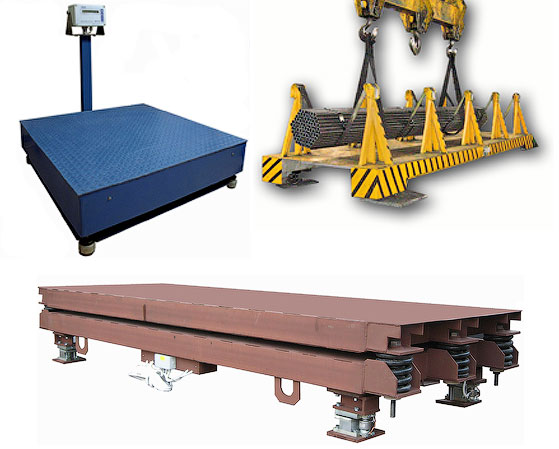

Scales load-taking platform of general purpose are manufactured with the sizes from 0,8х0,8 m to 2,5х2,5 m of the following modifications:
Floor platform scales — for manual loading or loading by telpher.
Cutting-in platform scales — are fixed in dibhole.
Low-profile platform scales — for weighing of weights in bogies by their rolling.

The choice of platform scales should be carried out on the assumption of technological conditions of the concrete manufacture.

The company manufactures platform scales of a special purpose, for example, for weighing of tubes, metal-roll (blow-proof) and so forth.
At customer's request platform scales can be mounted on the basis or on the intermediate frame.

The weighing indicator IW-320 8-digit light-emitting diode 14,5 mm indicator, 4-button control keyboard, the interface for the link with the computer (RS232, RS-485), automatic and manual zeroing, frame protection level IP54.

Platform scales are certified as a measuring device in Ukraine  (№ U 2924-09).
